Tube-End Sealing, Feed Length, and Trim Stock

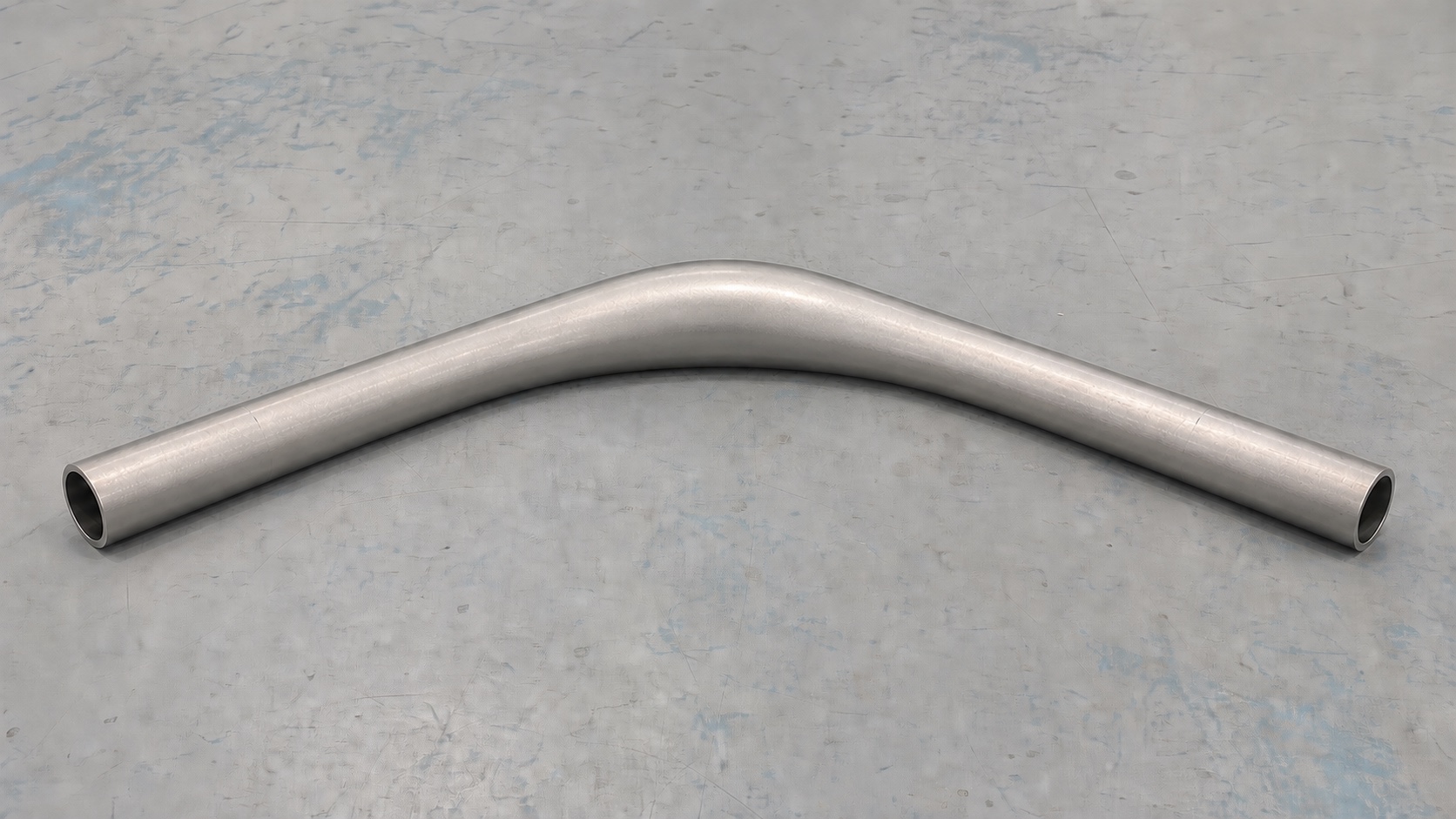

The product drawing controls the delivered length, ports, interfaces, datums, and tolerances. The hydroforming tool must also accommodate a temporary blank geometry that may disappear during trimming.

A typical process chain may include tube production, cutting, end preparation, bending or preforming, hydroforming, trimming, and cleaning (Vollertsen, 2000). Parts do not all use the same sequence. The point is that the press-loading end and the delivered edge remain different until the project defines how one becomes the other.

Die layout, sealing punches, feed stroke, blank length, and final trimming are linked. Adding an unspecified allowance after the part geometry is frozen can create conflicts with bends, ports, weld interfaces, or datums.

Record these five objects separately on the end-condition drawing:

1. Blank end: the actual cut end before the tube is loaded. Its cut quality, shape, wall condition, and location can affect loading and sealing.
2. Sealing contact region: the tube surface contacted by the proposed seal. Its geometry is set by the seal architecture and actual tube condition, not by a universal straight-land rule.
3. Axial-feed/support region: the area that transfers axial load or stabilizes the blank end when the route requires those functions.
4. Final trim line: the location of a controlled post-form cut when temporary stock must be removed.
5. Delivered end: the edge, port, flange interface, or joining datum that must meet the product drawing and acceptance requirements.

These objects may overlap or remain separate. One part may retain an as-formed end after it has been measured and accepted. Another may need temporary process stock for sealing, support, axial feed, or a controlled cut. Process stock is material retained for the proposed route, not a sixth fixed geometric zone.

Instead of applying a standard trim allowance, define the temporary end required by the proposed tooling and forming route. Then state whether a final cut is needed and how the delivered end will be measured and accepted.

The end tooling must contain the forming pressure. Some routes also apply axial feed or use the same area to support the blank end. Seal contact, axial load, support, blank-end condition, and the loading path therefore need to be reviewed together for the proposed architecture.

Imaninejad et al. tested AA6082-T4 extruded aluminum tubes with free, fixed or pinched, and forced end conditions. The reported effects belong to that material, specimen, loading, and end-condition study; they do not define a sealing arrangement for another part.

Kasaei et al. compared sealing methods in free-bulge tests on AA6063 aluminum tubes and reported material-flow behavior for that apparatus and those test conditions. The results do not establish a universal seal or feed arrangement.

Park et al. evaluated a spring–sleeve–punch sealing system through simulation and a non-axisymmetric forming experiment. The study supports review of that specific leakage-control concept; it does not show that the architecture is required or in production elsewhere.

The transferable point is the review question, not one combined solution: contact, support, friction, end restraint, and loading sequence must be checked under the material, specimen, tool, and load conditions actually proposed. Punch travel or commanded axial feed is a machine input; the amount of material that reaches the forming zone is a separate result.

A similar outside diameter is not enough to reuse a previous seal length. Check the seal architecture; material standard and delivery or processing condition; tube size, wall, and seam; blank-end shape and surface; axial load where used; expected wear; and the inspection method.

Review the area near the delivered edge on its own. A small finished-part feature can occupy the same space needed for sealing, support, feed tooling, or the final cut.

Bend close to the cut edge

A seal needs a stable, repeatable contact area. If the bend starts at the finished edge, there may be too little straight tube for the tool to engage. The project may need straight process stock, a different cut location, a revised end tool, or another route. Select among them from the actual geometry rather than an assumed minimum length.

Expansion near the cut edge

A round tube that becomes oval, rectangular, or enlarged near the end may lose the surface expected by the seal. Mark the required finished geometry and the portion that may remain as temporary process stock.

Openings near the tube end

A hole, slot, notch, or port can reduce end stiffness, interrupt the seal, or block trimming and tool access. Some openings therefore belong after forming. Define the finished feature separately from the operation that creates it.

Tube-end quality

Cut squareness, burrs, ovality, wall damage, contamination, and seam position can affect loading, contact, or leakage. Define the controls and inspection method for the selected seal instead of importing generic tolerances.

Downstream joining

An edge used for welding, clamping, or press fitting may have datum, surface, and straightness requirements that have nothing to do with sealing. Trimming must still deliver those conditions after the process stock is removed.

Sealing retains pressure. Feed tooling transfers axial load. Support stabilizes the end. Trimming establishes the delivered edge. A tool may combine these functions, but the drawing review should not.

The sealing contact region touches the tooling that contains the forming medium. The axial-feed/support region transfers axial force or stabilizes the blank end when the route requires it. The final trim line locates a post-form cut; the delivered end is the accepted product condition. Process stock is temporary material retained for one or more of these process needs.

One area may serve sealing, axial-feed, and support functions. Another tool may separate them, and some routes use little or no axial feed. The required contact geometry is architecture-specific; it is not always a straight land. A fixed seal length or trim allowance cannot be carried across projects.

Use axial feed or punch travel for the commanded machine action. Use material feed into the forming zone for the observed material-flow result. Machine travel does not by itself prove that the same length of tube entered the target region.

The trim plan also needs a datum. Define the final length from a controlled reference, confirm cutting access, and state the edge condition required by the next operation.

Confirm trimming, laser cutting, cleaning, and joining separately in the quoted scope. The forming route does not automatically include those operations.

Close these items before releasing the tool concept:

1. Record the delivered edge, final-length datum, controlled interface, and features that cannot move.
2. Record the actual incoming tube standard, delivery and processing condition, seam, end preparation, completed bending or preforming, and proposed process stock.
3. Define the sealing contact, feed direction where used, support, tool contact, and clearance around nearby features.
4. Define the final-cut datum, cutting access, edge condition, inspection, and downstream interface.
5. Reopen the review when a bend, port, datum, cut edge, tube condition, or seal architecture changes.

End-condition review table

The delivered-part requirements stay fixed. Temporary blank length, seal engagement, and process stock are outputs of the forming concept, not universal drawing constants.

Published seal studies use specific materials, specimen sizes, end restraints, loads, surfaces, and tool architectures. Their dimensions and loads support those test conditions only; they are not a seal-length table for other projects.

The commercial tube hydroforming drawing-review checklist lists the broader inputs normally needed for quotation. Add the end-condition record so the tooling team can review both the delivered geometry and the temporary process stock.

Frequently asked questions

References

1. Vollertsen, F. “Accuracy in process chains using hydroforming.” Journal of Materials Processing Technology 103 (2000).
2. Park, J. Y., Han, S. W., Jeong, H. S., Cho, J. R., and Moon, Y. H. “Advanced sealing system to prevent leakage in hydroforming.” Journal of Materials Processing Technology 247 (2017).
3. Imaninejad, M., Subhash, G., and Loukus, A. “Influence of end-conditions during tube hydroforming of aluminum extrusions.” International Journal of Mechanical Sciences 46, no. 8 (2004).
4. Kasaei, M. M., Moslemi Naeini, H., Abbaszadeh, B., Hashemi, S. J., and da Silva, L. F. M. “Improvement of material flow in tube hydroforming by advanced sealing methods.” Proceedings of the Institution of Mechanical Engineers, Part B: Journal of Engineering Manufacture 238, no. 3 (2024).
5. Alaswad, A., Benyounis, K. Y., and Olabi, A. G. “Tube hydroforming process: A reference guide.” Materials & Design 33 (2012).
