Prototype vs. Production Tooling in Tube Hydroforming

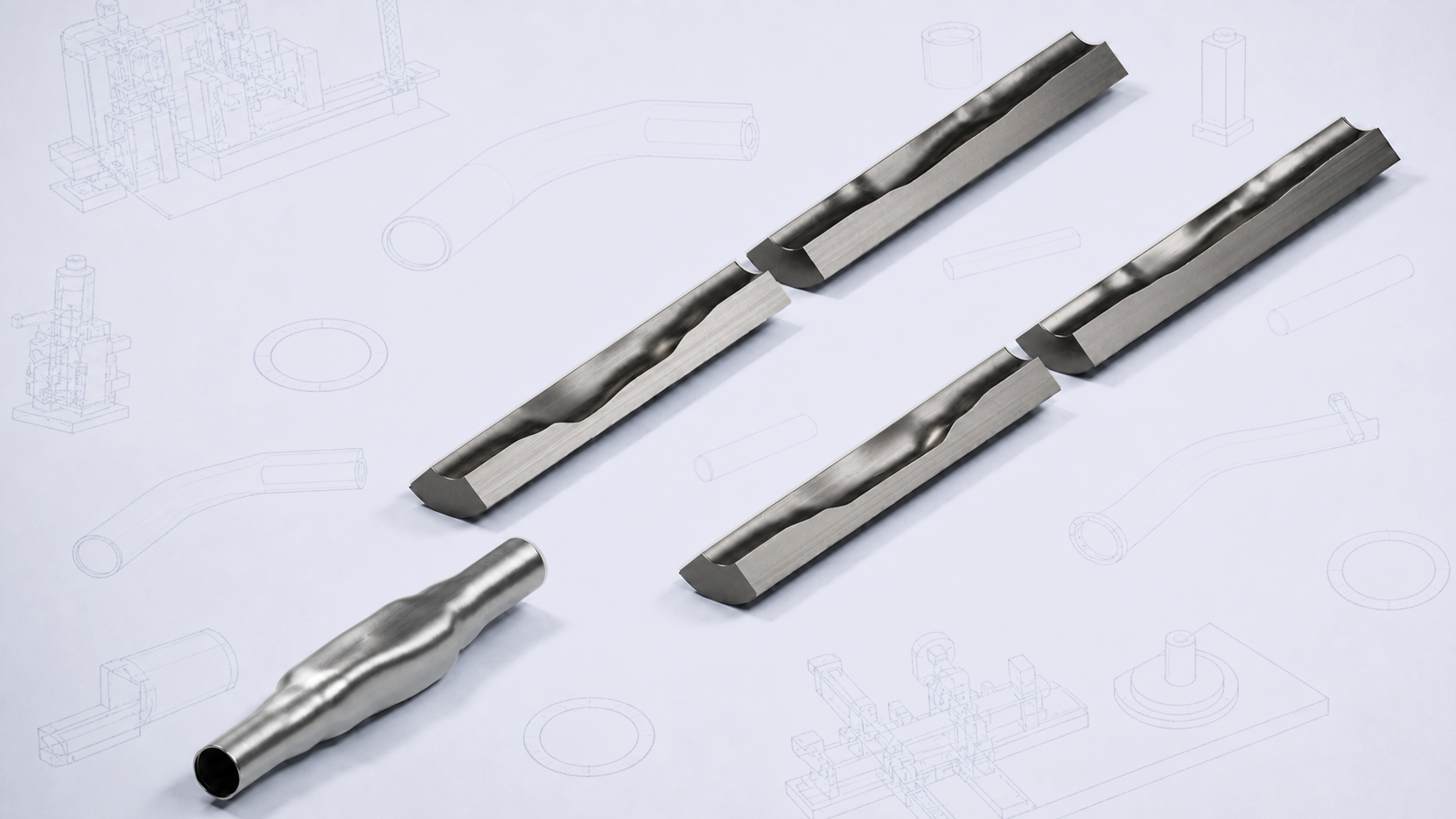

“Prototype,” “development,” “bridge,” and “production” are not complete technical specifications. Two suppliers can use the same label for tools with different structures, adjustment features, validation tasks, documentation, and intended use. The proposal needs to state what is actually included.

In tube hydroforming, the die cannot be separated from the rest of the process. Cavity geometry, seals and end feed, preform, lubrication, pressure path, tube condition, and machine constraints act together. A tooling review by Alaswad, Benyounis, and Olabi discusses strength under internal and axial load, controlled die surfaces, guidance, balanced construction, and possible interchangeable inserts. Which of those features applies still depends on the actual project.

For each tool stage, write down the input condition, the question to be answered, the required result, and the decision that follows.

A prototype or development tool makes sense while the part or forming route still contains consequential unknowns. Typical questions include:

• Can the selected tube and material condition fill the cavity without an unacceptable failure?
• What bending or preforming is needed before hydroforming?
• Where do thinning, thickening, wrinkles, incomplete fill, or seal problems occur?
• Can the critical datums and interfaces be formed and measured?
• Which part or tool features need adjustment before release?
• Do physical results support the simulation assumptions that matter most?

The tool design should make those questions testable. Accessible inserts or adjustment features may be more useful during development than a fixed cavity that produces one visually complete sample. When the uncertainty covers the full route, bending, preforming, sealing, pressure, and end feed may need separate development steps.

Published work has demonstrated rapid-tooling concepts for early hydroformed parts, including cast prototype molds and additively manufactured elements (Kochański and Sadłowska, 2020; Soe et al., 2013). These are examples of possible development approaches, not proof of a standard method or production equivalence.

One complete-looking sample may answer a geometry question and nothing more. Repeatability, wear, incoming-tube variation, trimming, inspection, and assembly can all remain open.

Production tooling has to work with a released and controlled process. The checks below are procurement and engineering questions, not automatic promises attached to the word “production.” Their applicability and ownership belong in the written scope.

Repeatable closure and alignment

Die halves, inserts, punches, seals, and guides need to return to the intended relationship after setup and through repeated cycles. Adjustments made by hand during development may need hard references or controlled procedures for production.

Structural response under forming load

Internal pressure and axial load are carried by the die, support structure, and interfaces. Deflection can change part geometry and seal behavior. The expected load response and any compensation therefore need to be understood for the actual tool.

Controlled working surfaces and friction

Tube–die contact affects material flow. Production planning should define the working-surface condition, lubrication, cleaning, and the response to wear or damage. The required surface treatment is material- and process-specific.

Serviceable and replaceable elements

High-load, sealing, guiding, or geometry-sensitive elements may need to be serviceable or replaceable. The choice depends on tool structure, expected use, maintenance strategy, validation results, and the contract; the production label alone does not define it.

Released process inputs

A production tool is validated with defined inputs: tube specification and condition, pre-bend or preform, orientation, lubricant, pressure-and-feed path, trimming state, and inspection method. If these inputs drift, a process change can look like a tooling failure.

Measurement records and engineering changes

Define how critical geometry and wall condition are measured, which samples become reference records, and how later changes are reviewed. A revised hole, bend, interface, material source, or tube condition may require revalidation when it changes forming, location, stiffness, sealing, or a downstream interface.

The written agreement should assign responsibility for drawings, sample and inspection records, engineering changes, maintenance records, spare elements, and ownership. These terms vary by project.

The first tool may be disposable after development, designed as a bridge with defined reusable elements, or built from the start to evaluate production requirements. These are project strategies, not standardized hydroforming tool grades.

1. Prototype or development tool that will be replaced

Use this route when uncertainty is high and quick access or modification matters more than preserving the first tool. The project scope should state that a separate production tool will follow after the design and process are better defined.

2. Bridge tool with a defined reuse plan

A bridge strategy works when selected elements can be modified, replaced, or carried into the later tool. Define which bases, cavities, inserts, seals, guides, and validation records may be reused, and which require redesign or requalification. “Bridge tool” is a project term, not an industry-standard class.

3. Production tool from the first build

When the product and forming route are sufficiently mature, the first build can include production requirements while retaining controlled tryout adjustment. This can avoid duplicate hardware, but early design changes may become more expensive or disruptive.

Choose the route from the remaining uncertainty, likely changes, cost of delay, production responsibilities, and the value of learning before committing to the final tool.

Prototype-to-production decision table

Virtual process development can compare bending, preforming, pressure, end feed, tool geometry, and likely failure locations before hard tooling is complete. Published work shows its use in multi-stage route development and the importance of reliable material and interface inputs (Liu, 2001; Strano et al., 2004).

Simulation earns its place by narrowing the physical test plan. It can flag sensitive regions and compare loading paths, but it cannot by itself establish delivered-tube condition, friction, sealing, tool response, setup repeatability, or inspection results. Those need measured samples.

The tooling proposal should show which questions simulation addresses and which remain assigned to physical tryout.

For each tool stage, record:

1. the engineering questions assigned to the first tool;
2. the assumed tube, material, bend, preform, sealing, and machine conditions;
3. the tool regions intended for tryout adjustment;
4. the measurements and physical results required for each decision;
5. trial conditions, sample records, and unresolved findings;
6. the inputs that must be released before the next stage;
7. the changes that trigger redesign or requalification;
8. responsibility for drawings, changes, maintenance, spares, records, and ownership;
9. post-form operations and validation outside the tool scope.

These records let the buyer compare scope and deliverables instead of comparing labels alone. ShuiYiYuan’s commercial tube hydroforming service page provides the inquiry path for a drawing-specific review; the validation scope remains quotation- and project-specific.

Adapt the following sequence to the part, remaining uncertainty, tooling route, and acceptance plan:

• Before tool release: define the part, incoming condition, forming assumptions, open questions, and results required from the first tool.
• During tryout: confirm sealing, feeding, contact, adjustment, load response, and the actual test condition.
• After samples are made: compare measured geometry, wall, surface, interfaces, and required functional results with the agreed criteria.
• Before repeat production: release the inputs, inspection method, change control, and responsibilities, and review repeatability and open risks.

This sequence is a validation method, not a set of standardized tool grades. One successful development sample does not establish production readiness while material range, measurement, wear, maintenance, repeatability, or change control remain open.

Frequently asked questions

References

1. Alaswad, A., Benyounis, K. Y., and Olabi, A. G. “Tube hydroforming process: A reference guide.” Materials & Design 33 (2012).
2. Kochański, A., and Sadłowska, H. “A Casting Mould for Rapid Tube Hydroforming Prototyping.” Journal of Casting & Materials Engineering 4, no. 2 (2020).
3. Liu, G. “Tube Hydroforming Process Development with the Aid of Computer Simulation.” SAE Technical Paper 2001-01-1134 (2001).
4. Strano, M., Jirathearanat, S., Shr, S. G., and Altan, T. “Virtual process development in tube hydroforming.” Journal of Materials Processing Technology (2004).
5. Soe, S. P., Eyers, D. R., Le, C. H., and Romli, A. “Additive Tooling for Tube Hydroforming.” Key Engineering Materials 572 (2013).
