Cross-Section Perimeter Change in Hydroforming Feasibility Screening

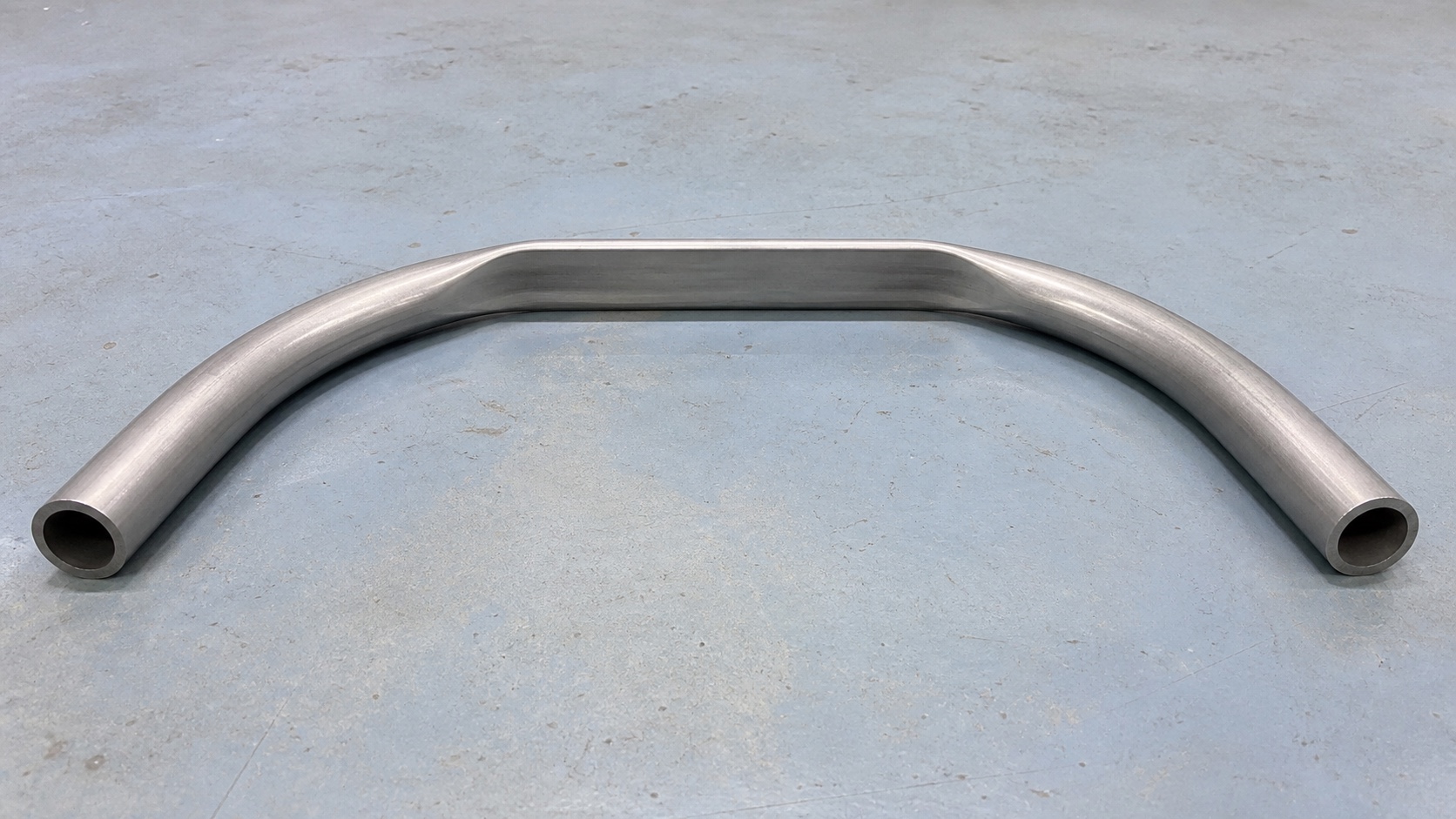

Cut each review section on a plane normal to the local centerline of the starting tube or defined preform. Measure the same closed boundary, usually the outside profile, at every station. Record the units, station location, geometry revision, and whether the value describes the starting tube, preform, or final part.

The comparison identifies where the route must create more circumferential length and where it must compress or redistribute material. That is only the first step. Internal pressure, axial feed, material response, friction, preforming, and die geometry act together in tube hydroforming (Koç and Altan, 2001; Ahmetoglu and Altan, 2000).

Do not use the result as a universal allowable expansion. It does not predict the final wall distribution or show whether feed can reach a remote feature. Branches, open profiles, and sections with more than one closed loop need a separate topology review rather than one combined index. Use the perimeter map to locate questions; resolve them with the actual shape, simulation, and physical tryout.

If the final profile is longer than the profile entering that station, the added length must come from circumferential stretch, material fed along the tube axis, or both. Stretch usually reduces wall thickness. Axial feed can supply material, but only while the pressure path, end condition, friction, bends, and die contact allow that material to move.

Largest diameter alone misses this distinction. An expansion near an accessible tube end may accept feed that cannot reach the same profile beyond a bend or a long contact zone. Identical computer-aided design (CAD) sections can therefore have different forming margins.

A lower perimeter is also a warning. It can indicate that the proposed route must gather or redirect material; it does not mean pressure will make the tube shrink evenly. The route may need a preform or controlled material accumulation before final pressurization. Under the specific conditions studied by Yuan and co-authors, wrinkles were used as an intermediate preform and then removed during expansion. A project still has to prove through development that any such instability disappears and the finished part meets its requirements.

Transition shape, corner radii, starting tube, pressure, and end feed must be developed as one system (Koç and Altan, 2002). The perimeter map helps organize that work.

Extract sections along the centerline at locations that change the forming route:

• the starting tube or defined preform;
• both ends of each transition;
• local maximum expansion or contraction;
• changes in corner radius or profile type;
• the entry and exit of major bends;
• fixed interfaces, ports, datums, and joining zones.

At each station, compare the final closed profile with the corresponding starting tube or preform on the same measurement basis. A project may calculate (final perimeter − incoming perimeter) / incoming perimeter to rank the stations. The ranking applies only to that part and route; feasibility still depends on shape, material flow, simulation, and tryout.

The sequence often matters more than the largest value. A gradual expansion into a stable profile does not load the tube like a contraction followed immediately by a sharp enlargement. A feature reached after a long die-contact zone also deserves more scrutiny than the same feature on an open feed path.

SAE development work on an automotive rail used the same route-based approach: bending, preforming, pressure, end feed, and tool geometry were evaluated together, including circumferential redistribution in the preform (Liu, 2001). The reported values belong to that case; the review method is the transferable part.

A rounded oval and a small-radius rectangular profile can have similar perimeter values and very different strain paths. The rectangular profile must fill the corners while remaining supported across flatter walls. Corner calibration often occurs at higher pressure, after some areas have already stretched.

Review the following geometry alongside perimeter:

Shape similarity

A starting section that resembles the final section may require less circumferential redistribution than one with the same perimeter but a very different shape. This is one reason preforming can be central to the route rather than an optional preliminary operation.

Transition length

A smooth change over a longer distance distributes deformation differently from an abrupt step. A short transition can concentrate strain and can also restrict how material flows from neighboring regions.

Corner radius

Tight corners demand more localized movement into the die cavity. The relevant question is not simply whether the overall perimeter is available, but whether the wall can fill the corner without unacceptable thinning, folding, or loss of dimensional control.

Bends and die contact

Pre-bending changes the starting wall distribution and the contact sequence. Once a tube surface is pressed against the die, friction can restrict later material flow. A forming zone positioned beyond a bend may therefore have less effective access to end feed than its centerline distance suggests.

Asymmetry and local features

One-sided lobes or bosses can create uneven demand even when the section remains one closed loop, so one perimeter value can hide the critical side. At a branch, an opening that breaks the boundary, or a station with multiple closed loops, stop the simple comparison and analyze each boundary and its connections separately.

A practical review combines the perimeter map with the rest of the forming route:

1. Record the starting tube size, wall, material and seam condition, plus any bending or preforming already completed.
2. Extract sections at transitions, bends, interfaces, and local extremes instead of relying only on regular spacing.
3. At each station, compare perimeter, profile type, corner radii, symmetry, and transition length.
4. Trace the feed path from each tube end and mark bends or die-contact zones that can restrict material flow.
5. Separate hydroformed geometry from holes, trimmed edges, welded fittings, and assembled brackets.
6. Prioritize locations where a large shape change coincides with poor feed access or a fixed interface.
7. Match material testing, simulation, tool development, and tryout to the remaining uncertainty and its consequence.

What to check at each section

Provide enough geometry to reconstruct the intended route: native CAD, section curves at critical stations, the proposed starting tube or preform, bend-centerline data, controlled interfaces, and any radii or transitions that remain open to change.

The review should identify straightforward stations, material-flow-sensitive stations, working assumptions, and items that require simulation or tryout. A single “hydroformable” label leaves out the conditions behind the decision.

ShuiYiYuan’s project-evaluation and hydroforming capability page lists the geometry needed for a drawing-specific review. The decision must use the actual CAD, tube condition, interfaces, delivery requirements, and section analysis for the project.

Frequently asked questions

References

1. Koç, M., and Altan, T. “An overall review of the tube hydroforming (THF) technology.” Journal of Materials Processing Technology 108 (2001).
2. Ahmetoglu, M., and Altan, T. “Tube hydroforming: state-of-the-art and future trends.” Journal of Materials Processing Technology 98 (2000).
3. Koç, M., and Altan, T. “Prediction of forming limits and parameters in the tube hydroforming process.” International Journal of Machine Tools and Manufacture 42 (2002).
4. Liu, J. “Tube Hydroforming Process Development with the Aid of Computer Simulation.” SAE Technical Paper 2001-01-1134 (2001).
5. Alaswad, A., Benyounis, K. Y., and Olabi, A. G. “Tube hydroforming process: A reference guide.” Materials & Design 33 (2012).
6. Yuan, S., Wang, X., Liu, G., and Wang, Z. R. “Control and use of wrinkles in tube hydroforming.” Journal of Materials Processing Technology 182(1–3), 6–11 (2007).
